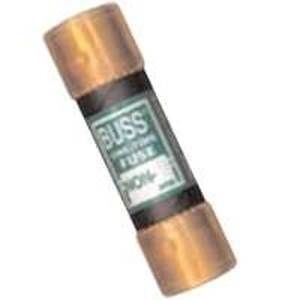

40 A, 250 VAC/125 VDC, 50 KA Non Cartridge Low Voltage Fast Acting Fuse,
Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. General-Purpose fuses have no time-delay and protect fuse panels, appliances and branch circuits.
Body Material: Melamine
Current Rating: 40 A
Diameter: 0.81 in
Element Type: Single
Fuse Type: Cartridge
Interrupt Rating: 50 kA
Length: 3 in
Rejection/Non-Rejection: Non-Rejection
Voltage Rating: 250 VAC 125 VDC
Features
- Protect lighting, heating and other circuits not subject to temporary surges and where available short-circuit currents are relatively low
- NON one-time fuses do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
- Basic protection 250 V NON Class K5 and H general-purpose, non-current-limiting, one-time fuses
- Basic protection 250 V NON Class K5 and H general-purpose, non-current-limiting, one-time fuses
| Brand | Bussmann |
|---|---|
| Manufacturer Number | BP/NON-40 |
| UPC Code | 009326500423 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 0.3 |
