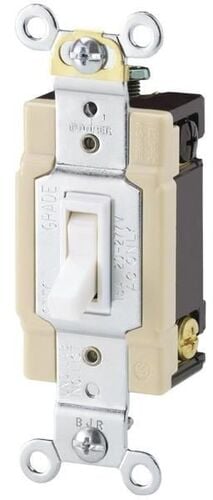

15 A, 125 VAC, Framed Grounded White Toggle Switch
Industrial design cam action mechanism insures quiet switch action. 120/277 volt rating ideal for fluorescent lighting fixtures typical in commercial applications. 0.050" thick steel mounting strap zinc-plated for corrosion resistance. Accepts up to number 10 solid or stranded wire. Combination slot/Phillips head mounting and terminal screws. Meets all UL 20 requirements, NOM certified.
Actuator Type: Cam Toggle
Color: White
Contact Configuration: 4-Way
Contact Material: Silver
Current Rating: 15 A
Dielectric Strength: 1500 V
Housing Material: Thermoplastic
Mounting Type: Wall
Temperature Rating: -20 to 60 deg C
Terminal Type: Lead Wire
Voltage Rating: 120 V
Wattage Rating: 05 hp
| Brand | Cooper Wiring |
|---|---|
| Color | White |
| Manufacturer Number | 1242-7W-BOX |
| Temperature Rating | -20 to 60 |
| UPC Code | 032664750168 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 1 |
