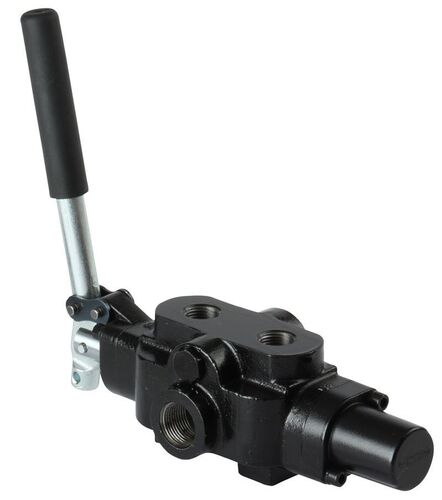

Delavan PowerMAX 30 GPM Log Splitter Kick-Off Control Valve. Delavan PowerMax Cylinders, Mono-Block and Kick-Off Valves are designed and manufactured to meet the most demanding requirements Features:• Constructed of high tensile strength gray cast iron• Built-in adjustable relief valve• Hard chrome plated spool Recommended Hydraulic System:• Maximum tank pressure: 500 PSI• Maximum operating temperature: 180˚F• Recommended system filtration: 10 micron Specifications:• Maximum GPM: 30• Maximum operating pressure : 3,625 PSI• Spool action is spring center/hydraulic kick-off• Built-in relief valve preset at 2,250 PSI• Kick-off pressure is non-adjustable, preset at 800 PSI• Handle can be installed in “up” or “down” position• Inlet / Outlet ports on the side: 3/4” NPT• Top ports going to the cylinder: 1/2” NPT • Packaging: Small box
Features
- Delavan PowerMax Cylinders, Mono-Block and Kick-Off Valves are designed and manufactured to meet the most demanding requirements
- Constructed of high tensile strength gray cast iron
- Built-in adjustable relief valve - Hard chrome plated spool
- Maximum GPM: 30 - Maximum operating pressure : 3,625 PSI
- Warranty: 3 Years from date of purchase
| Brand | Delavan Fluid Power |
|---|---|
| Manufacturer Number | KOV30-NPT |
| UPC Code | 830344007942 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 10 |
Delavan PowerMAX 30 GPM Log Splitter Kick-Off Control Valve. Delavan PowerMax Cylinders, Mono-Block and Kick-Off Valves are designed and manufactured to meet the most demanding requirements Features:• Constructed of high tensile strength gray cast iron• Built-in adjustable relief valve• Hard chrome plated spool Recommended Hydraulic System:• Maximum tank pressure: 500 PSI• Maximum operating temperature: 180˚F• Recommended system filtration: 10 micron Specifications:• Maximum GPM: 30• Maximum operating pressure : 3,625 PSI• Spool action is spring center/hydraulic kick-off• Built-in relief valve preset at 2,250 PSI• Kick-off pressure is non-adjustable, preset at 800 PSI• Handle can be installed in “up” or “down” position• Inlet / Outlet ports on the side: 3/4” NPT• Top ports going to the cylinder: 1/2” NPT • Packaging: Small box
Features
- Delavan PowerMax Cylinders, Mono-Block and Kick-Off Valves are designed and manufactured to meet the most demanding requirements
- Constructed of high tensile strength gray cast iron
- Built-in adjustable relief valve - Hard chrome plated spool
- Maximum GPM: 30 - Maximum operating pressure : 3,625 PSI
- Warranty: 3 Years from date of purchase
| Brand | Delavan Fluid Power |
|---|---|
| Manufacturer Number | KOV30-NPT |
| UPC Code | 830344007942 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 10 |
