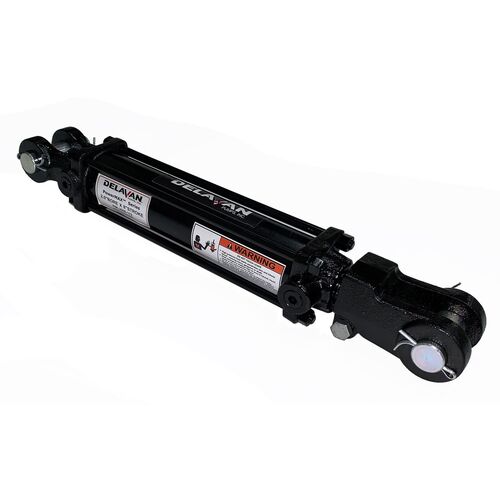

PowerMAX Hydraulic Cylinder 2" Bore x 8" Stroke x 1-1/8" Rod ASAE Certified
MFR #: PML2008-112ASAE
SKU #: 44490074
$94.99
This ASAE Certified Tie-Rod Cylinder has 2,500 PSI Working Pressure and NPT Ports
Features
- Bore: 2.0” - Stroke: 8” - Rod Diameter: 1.25” - Clevis Pin Diameter: 1” - Port Size: 3/8” FNPT
- Pin to Pin Center Retracted x Extended: 20-1/4” x 28-1/4”
- Max Rated PSI on Full Extension: Full PSI - Max Rated Column Load on Full Extension: 7,854 Lbs
- Chromed, polished and individually heat-treated shaft provides extended cylinder life
- Built tough enough to stand up to the roughest conditions
- Pins and retainers: high tensile steel, zinc plated to prevent corrosion, comes with cotter pin retainers
- Ports: double ported NPTF for greater flexibility of assembly, unless otherwise stated, cylinders assembled with ports inline
- Piston nut: heavy duty automation grade self locking piston nut holds piston in place under high cycle loading
| Brand | Delavan Fluid Power |
|---|---|
| Manufacturer Number | PML2008-112ASAE |
| UPC Code | 830344001018 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 19.5 |
