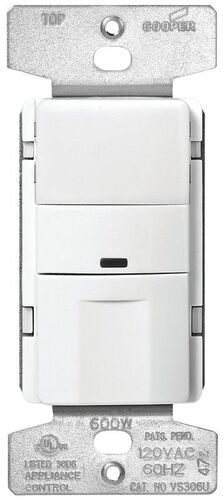

Eaton Wiring Devices' stylish passive infrared wallbox sensor provides a convenient energy saving lighting control alternative for 120 V applications. The sensor includes light level sensing capability to further enhance the energy savings by preventing automatic control of the lights when the ambient light level is sufficient. This sensor is easily installed in any standard wallbox to control most lighting loads and is available in six colors.
Color: White
Connection Type: Wire
Dimensions: 1.85 in L x 1.55 in W x 2.6 in H
Frequency Rating: 60 Hz
Lamp Type: CFL Fluorescent Halogen Incandescent LED
Material: Polycarbonate
Mounting Type: Wall
Number of Poles: 1
Sensing Angle: 180 deg
Sensing Range: 450 sq-ft
Sensor Type: Motion
Temperature Rating: 0 to 40 deg C
Features
- Convenient installation and test mode for set-up
- Selectable time delay
- Manual Off push-button
- Manual Off push-button
- Color-matched, reinforced lens is tamper-resistant
- Fits any decorator wall plate
- Occupancy switch provides auto-On/Off
| Brand | Eaton |
|---|---|
| Color | White |
| Manufacturer Number | OS306U-W-K-L |
| Material | Polycarbonate |
| UPC Code | 032664736490 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 1 |
