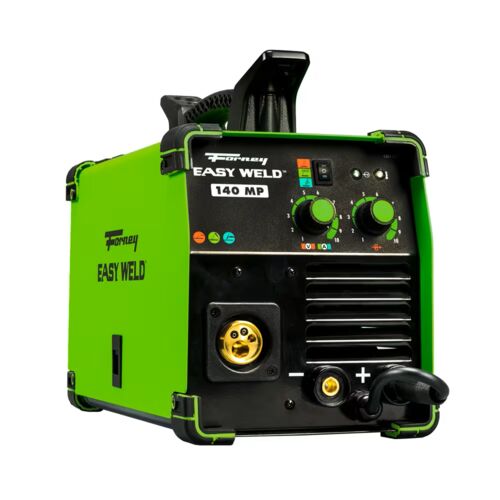

The Forney Easy Weld 140 MP is a 3-in-1 machine (Stick/MIG/TIG). Lightweight and extremely easy to use, it is a single-phase inverter machine. Applications include do-it-yourself (DIY), maintenance and repair, metal fabrication, hobbyist and metal artist.
SPECIFICATIONS
DUTY CYCLE: Stick 30% @ 80A, MIG 30% @ 90A and TIG 30% @ 110A
INPUT: 120-volt | OUTPUT VOLTAGE: 12-23V | OUTPUT CURRENT RANGE: 43-110A
FULL OUTPUT CURRENT RANGE: 10 - 140A
PROCESSES: Multi-Process Welder: MIG/DC TIG/Stick welder (TIG torch not included)
WIRE FEED SPEED RANGE: 79-197 inches per minute (IPM)
INCLUDES: 10ft MIG gun, 8ft electrode holder, 8ft ground clamp, 20A-15A adaptor and one additional .030 in contact tip
USES: .030 in / .035 in solid or flux-core wire
PLATE THICKNESS RANGE: Up to 1/4 in
WELDS: Up to 1/8 in stick electrode
REQUIRED: NO gas required when using flux-core wire!
FOOT PEDAL: No foot pedal operation on this machines
UNIT WEIGHT: 24.81 pounds (11.25 kg)
UNIT DIMENSIONS: 14.19 in (360.43 millimeters) x 19.31 in (490.47 millimeters) x 11.61 in (294.89 millimeters)
RECOMMENDED ACCESSORIES & CONSUMABLES
CONTACT TIPS: Forney ITEM#'s 60170 (11-23), 60171 (11-30) and 60172 (11-35)
WELDING NOZZLES: Forney ITEM# 85336 (21-50) and 85337 (21-62)
DIFFUSER: Forney ITEM# 85339 (35-50)
MILD STEEL MIG WIRE: Forney ITEM# 42285 (.024 in x 10 pounds), 42286 (.030 in x 10 pounds), 42290 (.024 in x 2 pounds) and 42291 (.030 in x 2 pounds)
FLUX-CORE MIG WIRE: Forney ITEM# 42300 (.030 in x 2 pounds) and 42301 (.030 in x 10 pounds)
GUN/TORCH: Forney ITEM# 84094
9V TIG TORCH: Forney ITEM# 85657 (Size 25 Dinse)
TIG WELDING CERAMIC CUP: Forney ITEM# 85454 (10N48)
2% THORIATED TUNGSTEN ELECTRODE: Forney ITEM# 85450 (1/16 in x 7 in)
Features
- PRACTICAL: Lightweight and portable
- USER-FRIENDLY: Features infinite voltage and wire feed speed control
- BUILT TOUGH: Constructed with an all-metal case, built tough to take on the day to day
- CONVENIENT: All you need to operate this machine is a 120-volt power source.
| Brand | Forney |
|---|---|
| Manufacturer Number | 271 |
| UPC Code | 032277002715 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 15 |
