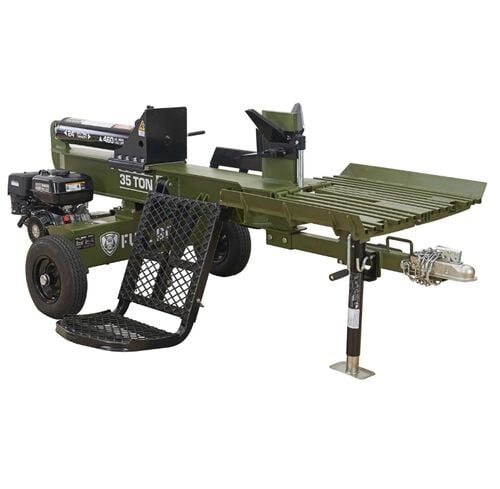

Unlock the power of efficiency and precision with Full Boar 35Ton Full Beam log splitters, catering to both commercial and residential endeavors. Effortlessly handle wood with the H6135FB and tackle any job with ease. Designed with professionalism in mind and offering superior quality and functionality featuring slip on 4-Way and 6-Way blades, 32″ large log tray, and a hydraulic log lift. Full Boar Log Splitter seamlessly meet the demands of your diverse needs, ensuring every split is executed with unmatched expertise providing excellent usability. Elevate your wood processing experience with our industry-leading solutions. Go FULL BOAR!
SPECIFICATIONS
Model #
H6135FB
Splitting Force
35 ton
Log Capacity
24″
Engine
Full Boar
Displacement
306 cc
Gross Torque
13.6 ft-lb / 3000rpm
Fuel Capacity
1.58 Gallon
Engine Oil Capacity
1.16 qts
Starting System
Recoil
Control Valve
Auto Return with Adjustable Detent
Pump Size
18 GPM
Hydraulic Cylinder Bore
5″
Hydraulic Cylinder Stroke
23.5″
Hydraulic Rod Diameter
2″
Cylinder Cycle Time
15 seconds
Hydraulic Capacity
6.6 Gallon
Hydraulic Oil Required to Fill
7.4 Gallon
Hydraulic Oil Included
Pre-filled with premium hydraulic fluid
Replacement Filters
Buit-in, Sealed, Suction Filter, Suction Screen
Beam
Heavy duty Box-shape formed construction
Wedge Size
12″
Wedge Style
2-way, 4-way, 6-way
Rear Wheels
4.80-8, DOT Approved 16″ O.D. Road Tires
Hitch Coupler
2″ Ball with Safety Chains
Safety Chains
Standard
Max Towing Speed
45 mph
Lifting Capacity of Log Lift Table
700 lbs
Wedge Lifting Stroke
5″
Hitch Handle
Standard
Open Operating Zone
Standard
Log Lift Table Attachment
Standard
Weight (lbs)
912.7 lbs
Dimensions (L × W × H) Inches
112.2″ × 59″ × 47.2″
Features
- BOX-shape Beam: Experience unparalleled strength and durability with our BOX beam Design Log Splitter. Engineered to outperform traditional I beam designs, our
splitter ensures superior stability and power, providing you with the confidence to tackle even the toughest logs. Elevate your wood splitting game with
the unmatched strength of our BOX beam design. - 4-Way Blade / 6-Way Blade Feature
The 4-way and 6-way blades for log splitters offer increased efficiency and versatility compared to standard blades. Both can split logs into multiple
sections with a single pass, reducing the number of cuts needed to process a log. Speed up the overall splitting process.
The ability to split logs into multiple sections allows for greater flexibility in the size and shape of the resulting firewood, catering to different heating
needs or equipment requirements.
By dividing the logs into smaller pieces, these blades can reduce the strain on the log splitter’s engine and hydraulic system, potentially extending the
lifespan of the machine.
the 4-way and 6-way blades offer increased efficiency, speed, versatility, and reduced strain compared to standard blades, making them popular
choices for those looking to streamline their log splitting operations. - 4-Way Blade / 6-Way Blade Switch
Experience effortless versatility with our log splitter’s interchangeable 2-Way, 4-Way, and 6-Way blades. Switching blades has never been easier! No
tools needed, seamlessly switch between cutting options to meet your diverse needs, ensuring efficient and tailored log splitting every time. Elevate
your wood processing experience with ease and precision. - Innovative Hydraulic Wedge Adjustment
Revolutionize your wood splitting process with our log splitter’s hydraulic wedge adjustment, offering a remarkable 3.55 inches of vertical wedge
position range. This cutting-edge feature empowers operators to effortlessly adjust the wedge height, guaranteeing uniform center splits regardless of
log size. Say goodbye to uneven cuts and hello to consistent, professional results. - Hydraulic Log Lift
Say goodbye to back strain with our hydraulic-powered log lift, designed to effortlessly hoist logs up to 700 lbs with ease, while doubling as a
convenient work table. It simplifies the loading process with a simple lever pull. Enjoy the convenience and comfort of hassle-free wood processing
with our innovative hydraulic log lift feature. - Fast Cycle Time:
Oversized hydraulic components provide the shortest cycle time in its class.
A 2″ cylinder rod, 3/4″ hoses help to reduce cycle time to 17.7 seconds. No more wasted time between rounds! - 32” Log Tray
More sizable tray provides enough room to accommodate larger and longer logs, reducing the need for cutting them down before splitting, making the
whole process of dealing with massive logs simplified and uncomplicated. - Hydraulic oil filter is mounted inside the reservoir, eliminating damage from falling logs and operator entanglement.
- Dual end cylinder support for equal weight distribution and wear reduction.
| Brand | Full Boar |
|---|---|
| Clearing Width | 24" |
| Engine Size | 300 cc |
| Engine Type | 4-Cycle |
| Fuel Type | Gasoline |
| Manufacturer Number | H6135FB |
| UPC Code | 850015852886 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 1045.2 |
