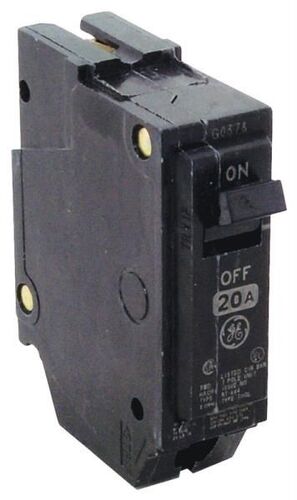

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Type THQL 1 in per pole. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger and Crouse-Hinds. 15 to 30 A 14 to 8 Cu or 12 to 8 Al AWG wire, 35 to 60 A 8 to 3 Cu or 8 to 2 Al AWG wire. UL listed, HACR rated. 1 in module, 120/240 V, 10,000 AIR.
Actuator Type: Quick-Make Quick-Break
Current Rating: 20 A
Dimensions: 3.28 in L x 1 in W x 2.38 in H
Frame Type: Q-Line
Interrupt Rating: 10 kA
Mounting Type: Plug
Number of Phases: 1
Number of Poles: 1
Operating Frequency: 50/60 Hz
Operating Temperature: 60 to 75 deg C
Suitable for: Reverse Feed
Terminal Type: Screw Clamp
Features
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Breaker case is made of heat-resistant thermoset for stability and structural integrity
- Breaker case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
| Brand | GE |
|---|---|
| Manufacturer Number | GETHQL1120 |
| UPC Code | 783164012866 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 0.3 |
