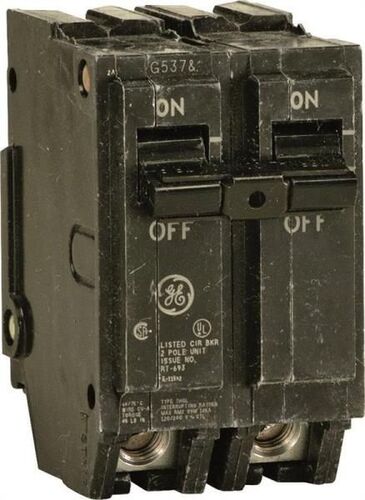

120/240 VAC, 50 Amp, 2 Poles Q-Line Standard Circuit Breaker
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 A 14-8 Cu or 12-8 Al AWG wire, 35 to 60 A 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).
Actuator Type: Quick-Make Quick-Break
Current Rating: 50 A
Dimensions: 3.28 in L x 2 in W x 2.38 in H
Frame Type: Q-Line
Interrupt Rating: 10 kA
Mounting Type: Plug
Number of Phases: 1
Number of Poles: 2
Operating Frequency: 50/60 Hz
Operating Temperature: 60 to 75 deg C
Suitable for: Reverse Feed
Terminal Type: Lug
Features
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
| Brand | GE |
|---|---|
| Manufacturer Number | GETHQL2150 |
| UPC Code | 783164012941 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 0.3 |
