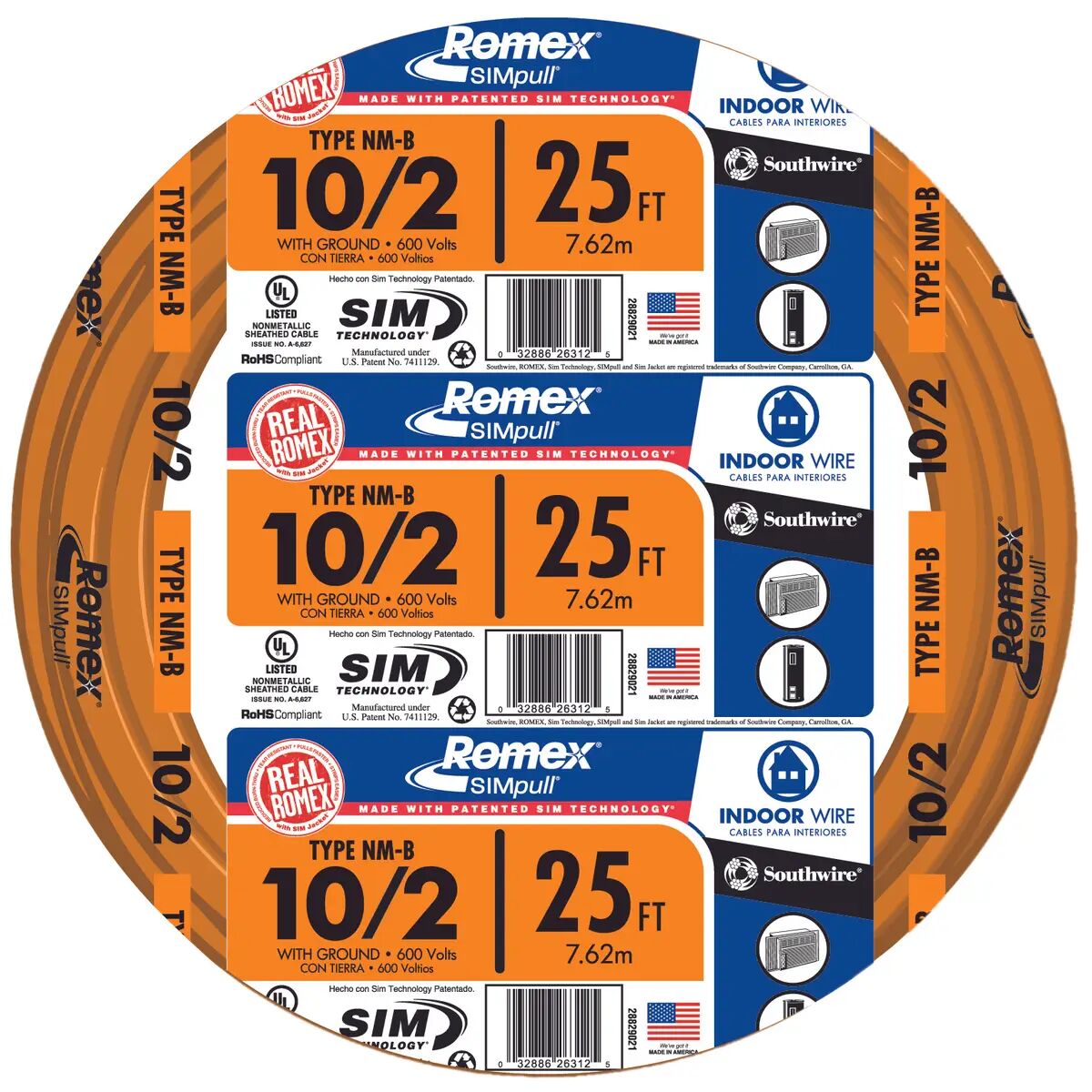

10/2 CU Romex SIMpull Copper Type NM-B Cable with Ground Building Wire - 25'
Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the National Electric Code Article 336. Dwellings not exceeding 3 floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.
Conductor Insulation: PVC
Conductor Material: Copper
Current Rating: 30 A
Length: 25 in
Number of Conductors: 2
Operating Temperature: 90 deg C
Sheath Color: Orange
Sheath Material: Nylon
Type: NM-B
Voltage Rating: 600 V
Wire Size: 10 AWG
Features
- SIMpull jacket designed for easier pulling
- Color-coded jacket
| Brand | Southwire |
|---|---|
| Color | Orange |
| Length | 25' |
| Manufacturer Number | 28829021 |
| UPC Code | 048243263127 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 3.15 |
