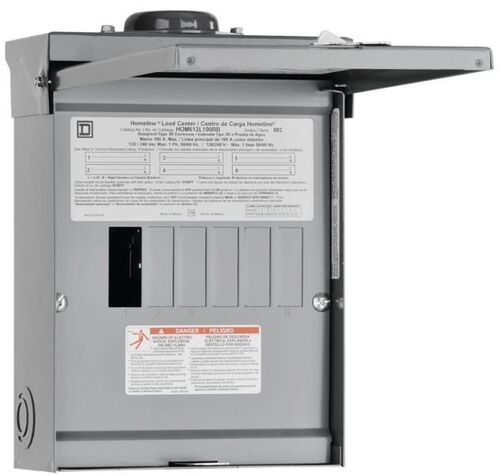

Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom. NEMA type 3R enclosure resists rain for durable performance. ANSI certified and UL listed.
Breaker/Load Center Type: Main Lug
Bus Bar Material: Aluminum
Cable Size: 8 to 1 AWG
Color: Gray
Cover/Lid Type: Surface
Current Rating: 100 A
Enclosure Type: NEMA 3R
Finish: Baked Enamel
Interrupt Rating: 10 kA
Mounting Type: Plug
Number of Circuits: 12
Number of Phases: 1
Features
- Accommodates plug-on secondary surge arrestor
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
| Brand | Square D |
|---|---|
| Manufacturer Number | HOM612L100RB |
| UPC Code | 047569071256 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 6 |
