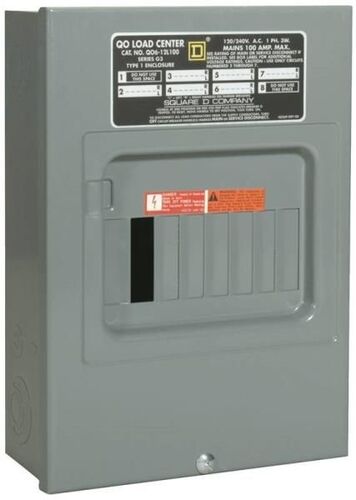

Main lug indoor load center, 100 A, 6 space/12 circuits. 1-1/2 in maximum knockouts in the top and bottom end walls for overhead or underground feed. NEMA type 1 for indoor use. Steel enclosure. Single-phase, solid neutral. UL listed.
Breaker/Load Center Type: Main Lug
Bus Bar Material: Aluminum
Cable Size: 8 to 1 AWG
Color: Gray
Cover/Lid Type: Surface
Current Rating: 100 A
Enclosure Type: NEMA 1
Finish: Baked Enamel
Interrupt Rating: 10 kA
Mounting Type: Plug
Number of Circuits: 12
Number of Phases: 1
Features
- Indoor and outdoor versions
- Separate flush or surface mount covers
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
| Brand | Square D |
|---|---|
| Manufacturer Number | QO6-12L100SCP |
| UPC Code | 047569805073 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 6 |
