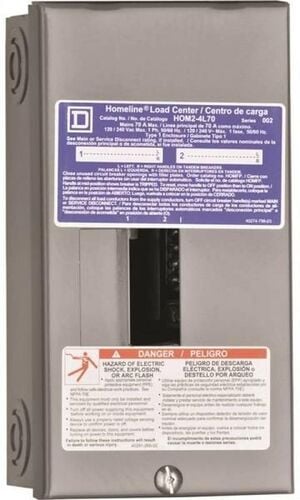

Main lug indoor load center, 70 A, 2 space/4 circuits. Maximum SCCR of 10,000 and a maximum load of 240 V. NEMA type 1 enclosure. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.
Breaker/Load Center Type: Main Lug
Bus Bar Material: Aluminum
Cable Size: 12 to 3 14 to 4 AWG
Color: Gray
Cover/Lid Type: Surface
Current Rating: 70 A
Enclosure Type: NEMA 1
Finish: Baked Enamel
Interrupt Rating: 10 kA
Mounting Type: Plug
Number of Circuits: 4
Number of Phases: 1
Features
- Accommodates plug-on secondary surge arrestor
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Surface mount device cover without a door
- Surface mount device cover without a door
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
| Brand | Square D |
|---|---|
| Manufacturer Number | HOM24L70S |
| UPC Code | 047569071201 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 6 |
