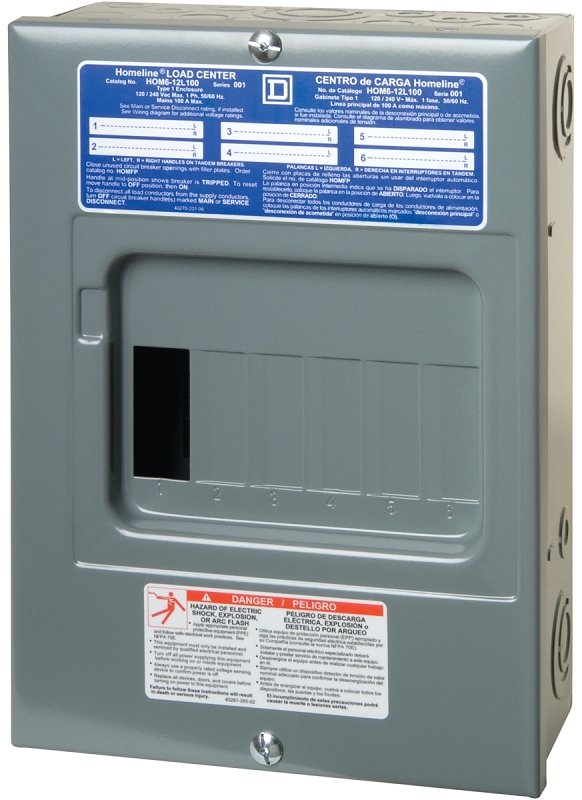

Homeline Hom612l100scp Load Center
Main lug indoor load center, 100 A, 6 space/12 circuit.
NEMA type 1 enclosure. Single phase, 3-wire, solid neutral. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.
Features
100 A
6-Space
12-Circuit
Main Lug
NEMA 1 Enclosure
Plug
Gray
Accommodates plug-on secondary surge arrestor
Overhead/underground feed simply by rotating the device before installing
Surface mount device cover without a door
Thermoplastic interior assembly is among the most rugged in the industry
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
| Brand | Square D |
|---|---|
| Manufacturer Number | HOM612L100SCP |
| UPC Code | 47569071232 |
| Warning | WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer/birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Weight (Lbs) | 7.65 |
